Armoring
Cable armoring provides mechanical protection against physical damage, crushing, and rodent attacks. Essential for underground and harsh environment installations.
What is Armoring?
Cable armoring is a process where steel wires or tapes are applied around the cable core to provide mechanical protection. This protects cables from physical damage, crushing forces, and rodent attacks. Armoring is essential for cables used in underground installations and harsh environments.

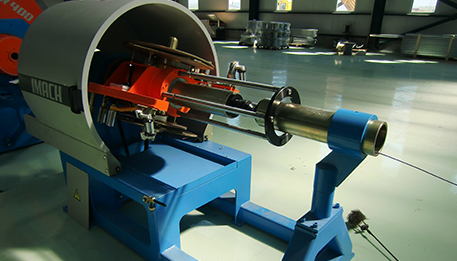

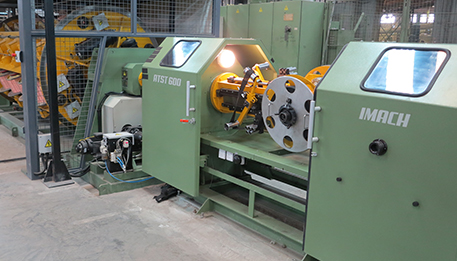

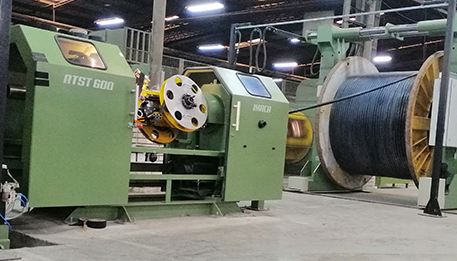

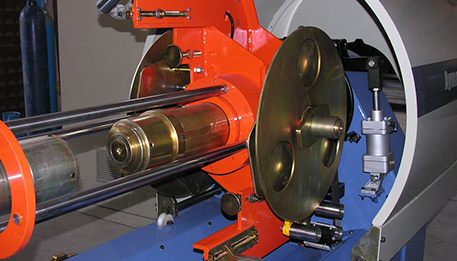

Tangential Armoring (Steel Tape)
Operations: Steel tape armoring
Materials: Galvanized steel tape, Aluminum tape
Features: Continuous interlocking armor for flexibility
| Armoring Head Qty | Head Diameter [mm] | Tape Width [mm] | Max. Rpm | Cable Diameter [mm] | Optional Equipments | Safety | Voltage |
|---|---|---|---|---|---|---|---|
| 1 - 2 | 300 - 800 | 25 - 100 | 200 - 800 | 10 - 100 | Tape Break Sensor, Tension Control, Overlap Adjustment | CE | 380V 50Hz / 460V 60Hz |

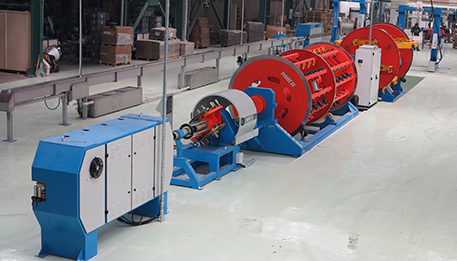

Rigid Armoring (Steel Wire)
Operations: SWA (Steel Wire Armoring)
Materials: Galvanized steel wire, Aluminum wire
Features: Heavy-duty protection for power cables
| 400mm Reel | 500mm Reel | 630mm Reel | Max Speed | Wire Dia | Optional | Safety | |||
|---|---|---|---|---|---|---|---|---|---|
| Qty | Rpm | Qty | Rpm | Qty | Rpm | ||||
| 12 | 200 | 12 | 160 | 12 | 140 | 30 m/min | 1.25 - 4.0 mm | Auto Reel Loading, Wire Break Sensor | CE |
| 24 | 150 | 24 | 120 | 24 | 100 | ||||
| 36 | 120 | 36 | 90 | 36 | 75 | ||||
| 48 | 100 | 48 | 75 | 48 | 60 | ||||
Complete Armoring Lines
Turnkey Armoring Solutions
Complete armoring lines integrating payoffs, armoring machines, and takeups into seamless production systems for SWA and STA cables.
