Coiling
Cable coiling machines package finished cables into coils for easy handling, storage, and distribution to retailers and end users.
What is Coiling?
Cable coiling is the final step in cable production where finished cables are wound into neat coils or onto reels for packaging. Coiling machines prepare cables for distribution to retailers, construction sites, and end users.

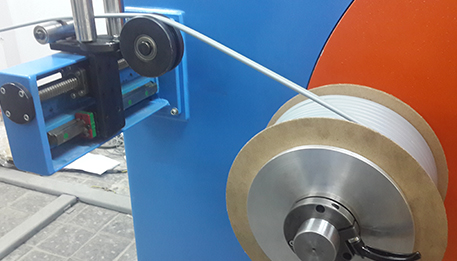

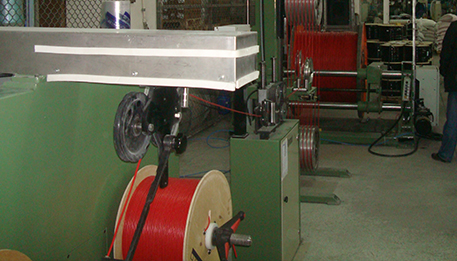

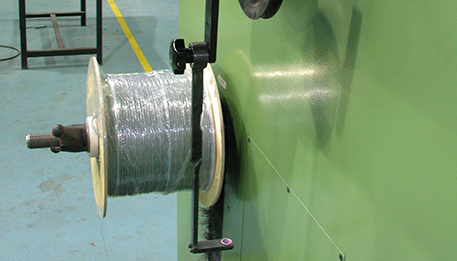

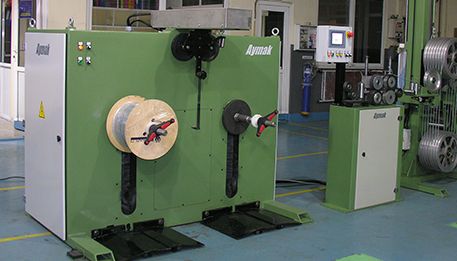

Wooden Reel Coiling Machines
Operations: Winding onto wooden reels
Reel Sizes: 400 - 2000 mm diameter
Features: Traverse system for even winding
| Reel Diameter [mm] | Max. Reel Weight [kg] | Max. Line Speed [m/min] | Optional Equipments | Safety | Voltage |
|---|---|---|---|---|---|
| 400 - 2000 | 500 - 5000 | 100 - 500 | Auto Traverse, Length Counter, Hydraulic Lift | CE | 380V 50Hz / 460V 60Hz |

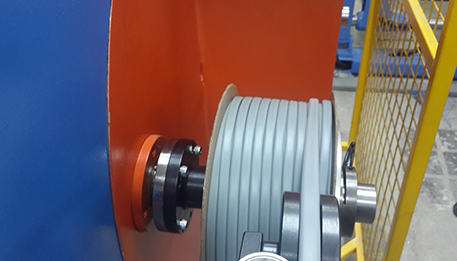

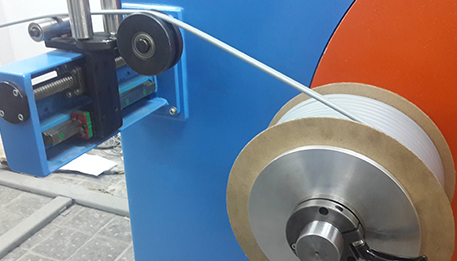

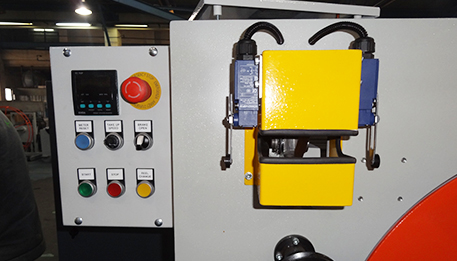

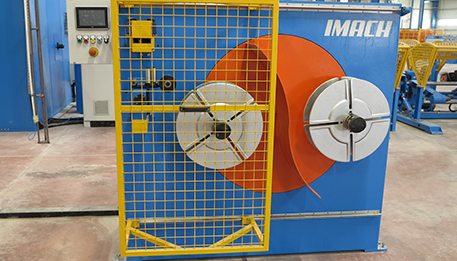

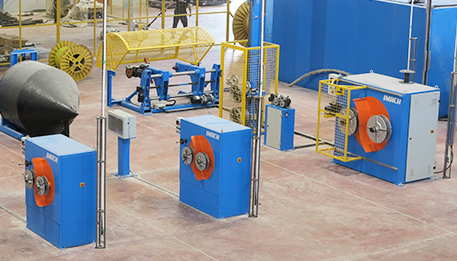

Semi-Automatic Coiling Machines
Operations: Box coiling, Ring coiling
Coil Sizes: 200 - 500 mm inner diameter
Features: Manual coil removal, automatic length counting
| Coil Inner Dia [mm] | Coil Outer Dia [mm] | Max. Line Speed [m/min] | Length Range [m] | Optional Equipments | Safety | Voltage |
|---|---|---|---|---|---|---|
| 200 - 500 | 300 - 700 | 60 - 200 | 25 - 500 | Binding System, Shrink Wrapping, Label Printer | CE | 380V 50Hz / 460V 60Hz |

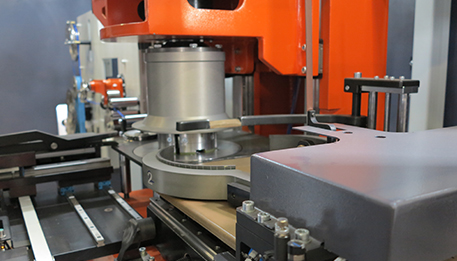

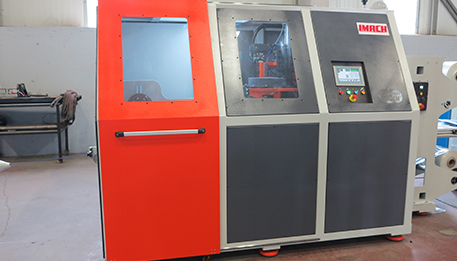

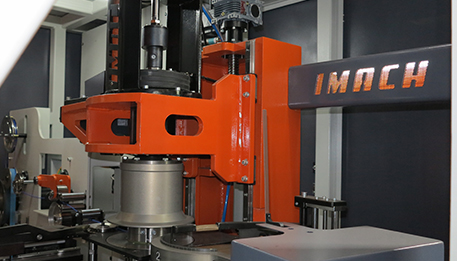

Automatic Coiling Machines
Operations: Fully automatic coiling and packaging
Coil Sizes: 200 - 600 mm inner diameter
Features: Auto cutting, binding, and ejection
| Coil Inner Dia [mm] | Coil Outer Dia [mm] | Max. Line Speed [m/min] | Length Range [m] | Coils/Hour | Optional Equipments | Safety | Voltage |
|---|---|---|---|---|---|---|---|
| 200 - 600 | 300 - 800 | 100 - 400 | 25 - 1000 | 30 - 120 | Auto Binding, Shrink Wrap, Conveyor, Palletizer | CE | 380V 50Hz / 460V 60Hz |
Complete Coiling Lines
Turnkey Coiling & Packaging Solutions
Complete coiling lines integrating payoffs, coilers, binding, shrink wrapping, and palletizing into seamless packaging systems.
