Taping
Tape insulation is a process where tape materials are wrapped around conductors for electrical insulation, shielding, and mechanical protection.
What is Taping?
Tape insulation is a process where tape materials such as Mylar, Cloth, Paper, or Al-Pet (Aluminum-Polyester) are wrapped around conductors or cables. This provides electrical insulation, electromagnetic shielding, and mechanical protection.

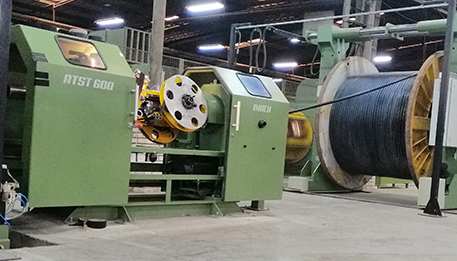

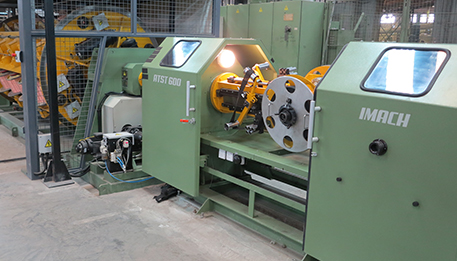

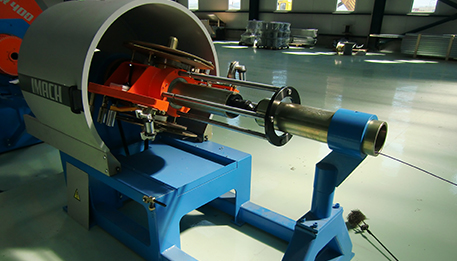

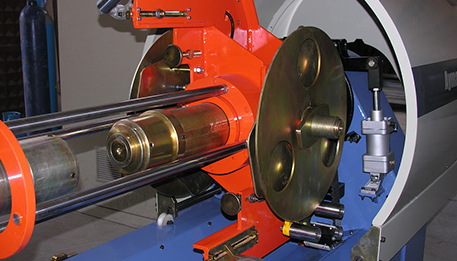

Tangential Taping Machines
Operations: Tape wrapping with tangential application
Tape Materials: Mylar, Cloth, Paper, Al-Pet, Mica
Features: Adjustable overlap and tension control
| Taping Head Qty | Head Diameter [mm] | Max. Tape Width [mm] | Max. Rpm | Cable Diameter [mm] | Optional Equipments | Safety | Voltage |
|---|---|---|---|---|---|---|---|
| 1 - 6 | 200 - 600 | 25 - 100 | 500 - 3000 | 2 - 80 | Tape Break Sensor, Inner Tension Control, Auto Overlap Adjustment | CE | 380V 50Hz / 460V 60Hz |

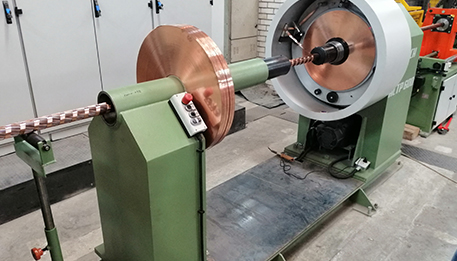

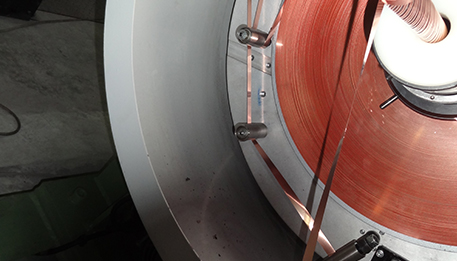

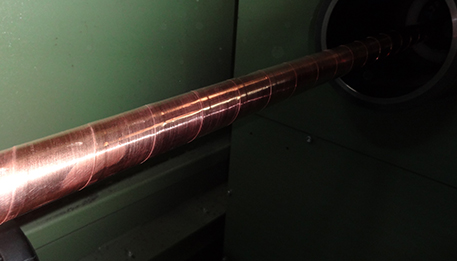

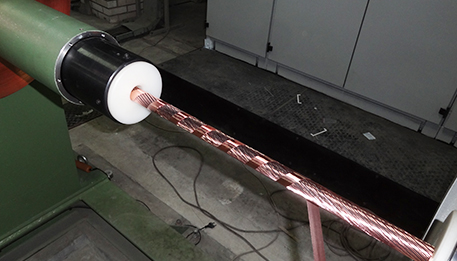

Concentric Taping Machines
Operations: Concentric tape application
Tape Materials: Mylar, Cloth, Paper, Al-Pet, Mica
Features: Precise concentric wrapping for uniform coverage
| Taping Head Qty | Head Diameter [mm] | Max. Tape Width [mm] | Max. Rpm | Cable Diameter [mm] | Optional Equipments | Safety | Voltage |
|---|---|---|---|---|---|---|---|
| 1 - 4 | 200 - 600 | 25 - 100 | 300 - 2000 | 5 - 100 | Tape Break Sensor, Tension Control, Overlap Adjustment | CE | 380V 50Hz / 460V 60Hz |

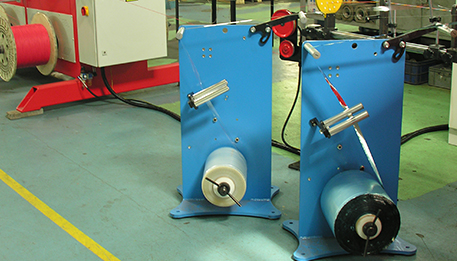

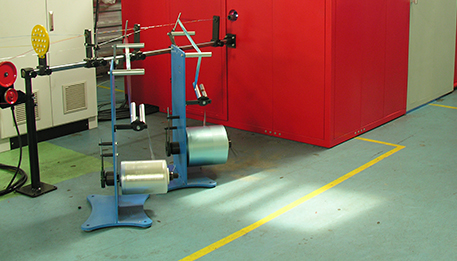

Tape Payoff Systems
Simple & Active Tape Payoffs
Simple Tape Payoffs: Basic mechanical tension control for standard applications.
Active Tape Payoffs: Motorized tension control for precision applications requiring consistent tape tension.
| Type | Tape Width [mm] | Max. Roll Diameter [mm] | Tension Control | Safety | Voltage |
|---|---|---|---|---|---|
| Simple | 10 - 100 | 300 | Mechanical | CE | - |
| Active | 10 - 100 | 400 | Motorized / Load Cell | CE | 380V 50Hz / 460V 60Hz |
